Features
1. The double structure design eliminates color unevenness caused by static electricity and differences in specific gravity!
In JCLW, Virgin material and MB material are charged separately and mixed just before the molding machine's Loading port charge hopper. Virgin material flows through the outside of the double structure and is supplied by gravity. Meanwhile, the MB material passes through the inside of the double structure and is supplied from the side. This makes it possible to prevent supply problems such as MB material sticking to charge hopper due to static electricity during mixing and only Virgin material being supplied, compared to conventional charge hoppers.


2. By optimizing the amount of MB material added, annual costs can be reduced by 10 to 20%!
*Cost reduction effects vary depending on molding conditions.

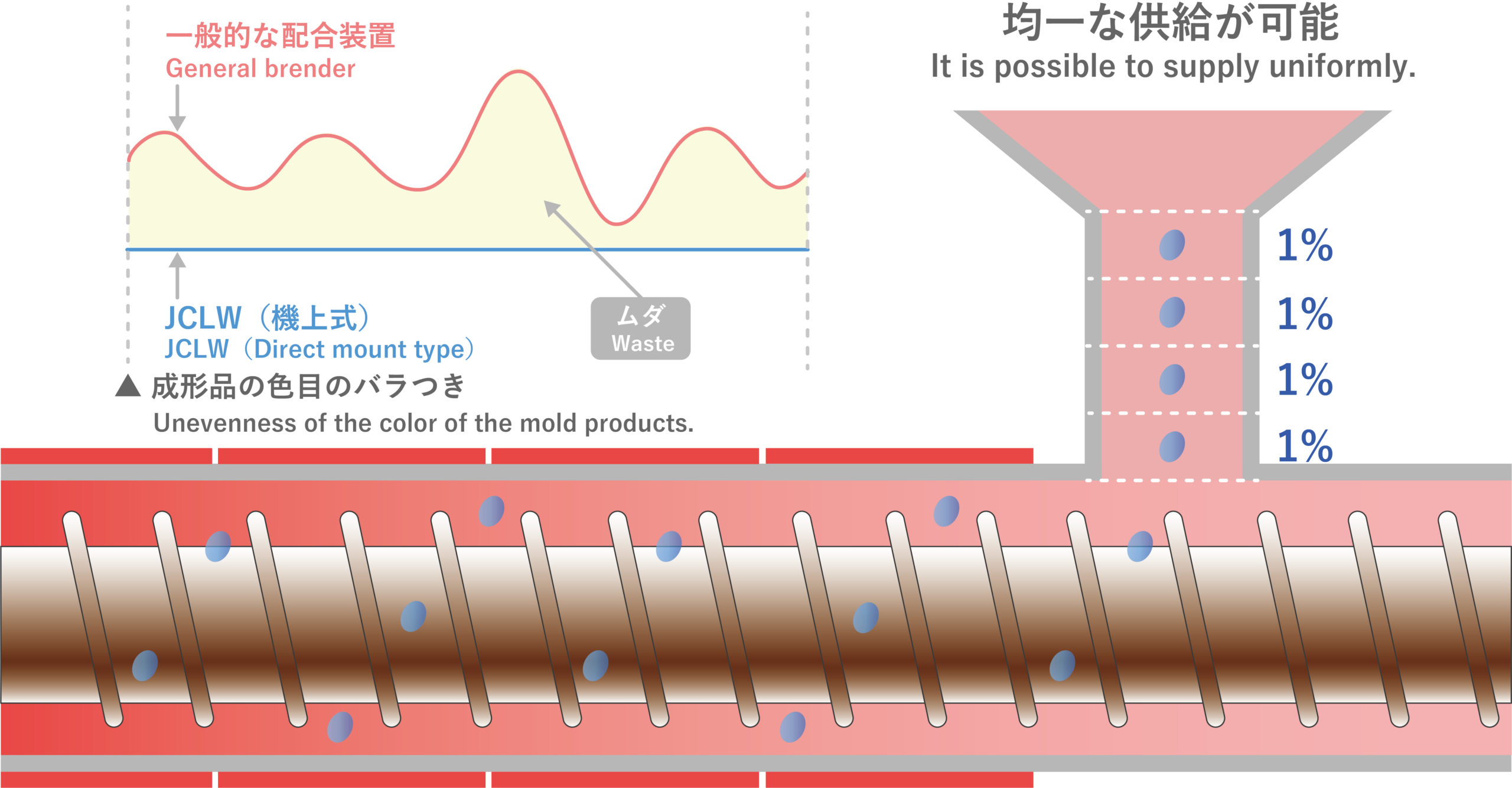

The amount of MB material used is generally small, at 1-5% of Virgin material. However, because it is an expensive material, optimizing the amount used is essential. In this way, proper management of MB material also leads to cost management, such as cost reduction. JCLW uses a dosing cylinder in the supply section, which achieves a more stable supply than a screw feeder. With a screw feeder, the screw groove causes a pulsating discharge, but since the dosing cylinder does not have a screw Blade, it suppresses pulsation and allows for stable and accurate material supply.


3. On-board installation solves secondary transportation problems!
A typical floor-mounted blending device requires a large installation area and secondary transport. On the other hand, JCLW is installed between charge hopper and the molding machine, and performs calculations and blending on the machine, eliminating the need for secondary transport. Therefore, separation of materials due to material transport does not occur.
4. It's easy to change ingredients frequently!
Especially in production sites with a wide variety of products in small quantities, the issue of how quickly and reliably material changes can be completed is an issue. In such sites where frequent material changes are required, the JCLW with its simple structure is useful.



5. Touch screen controller for stress-free molding!
Equipped with an 8-inch color touch panel that is highly visible and allows intuitive operation. The operation unit is separate, and the magnetic mounting structure and connection cable (standard length 3m) allow for highly flexible handling. The controller combines operability and flexibility, contributing to the creation of a stress-free work environment.

6. We also manage the traceability of all shots!
オプション対応の専用ソフトでは、全ショット毎のデータ管理が可能です。
有線LANを使用し、社内ネットワークと接続することができます。各配合機の500件の配合設定の保管や、PCからの条件変更など、作業効率の向上に貢献します。
